3-In-1 Bottle Washing Filling Capping Machine / Mineral Water
Bottling Plant
product description
This Automatic Wash-filling-capping Water Filling Machine is used to produce bottled mineral
water, purified water, flavored water, alcoholic beverage and other non-gas Liquid. This Machine
can be applied to all kinds of plastic products such as PET, PE Bottles, size varies from 250ml-
2500ml meanwhile few changeover is needed. This machine has 18 rising heads, 18 filling
heads and 6 capping heads, capacity varies from 4000BPH to 6000BPH (for 500ml PET bottle).
Our water filling machine is designed for the low/middle capacity and small factory. It features low
water and low electricity consumption, small space occupation as well as easy operation. At the
same time It improves the sanitary conditions and simplifies the maintenance compared with the
last generation water filling machine. it can perfectly complete the function of automatic washing,
filling and capping, which has been aproved by our clients as technical matured and quality
product.
Technical parameter
| Model | CGF18-18-6 |
| Capacity | 6000bph (500ml PET bottle) |
| Bottle Height | 150-320mm |
| Bottle Diameter | 40-108mm |
| Filling Tenperature | ambient |
| Filling Technology | gravity filling |
| Applications | purified water and mineral water |
| Power supply | 380V 50Hz 3Phases or customized |
| Total power | 5.03KW |
| Dimension | 2450*1800*2300mm |
| Weight | 3500kg |
product pictures

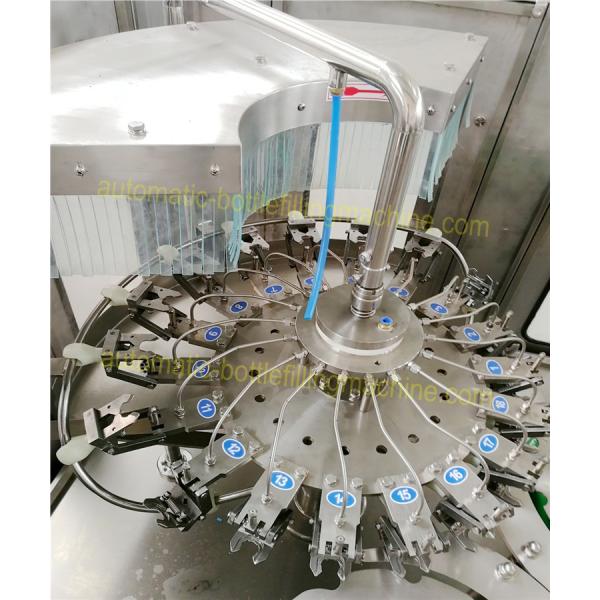

rising
filling
capping
besides this CGF18-18-6, we also have other capacity
| Model | CGF16-12-6 | CGF18-18-6 | CGF24-24-8 | CGF32-32-10 | CGF40-40-12 | CGF50-50-15 |
| Number of rising heads | 16 | 18 | 24 | 32 | 40 | 50 |
| Number of filling heads | 12 | 18 | 24 | 32 | 40 | 50 |
| Number of capping heads | 6 | 6 | 8 | 10 | 12 | 15 |
| Bottle standard(mm) | Diameter:Φ50-Φ108 Height:150-320 |
| Rated production capacity(500ml) | 4000BPH | 6000BPH | 10000BPH | 12000BPH | 16000BPH | 24000BPH |
| Installed capacity(KW) | 3.8 | 4.3 | 6.5 | 8.7 | 9.5 | 12 |
