Industrial Bottle 2-In-1 Unit Vegetable / Cooking /Soybean Oil Filling
Machine
Specifations
1. oil filling and sealing machine
2. 2-in-1 monoblock,vegetable cooking soybean oil filling machine
3. 18 filling heads,6 sealing heads
Features
Automatic cooking oil filling machine is suitable for filling paste or oil product, such as ketchup, jam,
fruit and vegetable paste, cooking oil, honey, corn soup, peanut paste, sauce. It also can be used for
pulp, edible bird's nest, aloe, rice wine and so on.
The world famous brands of electrical and pneumatic components, low failure rate,long service life.
Automatic cooking oil filling machine works stably, fills precisely, and suits for cold and hot filling. The
piston and piston barrel after the treatment of top technology cooperate accurately, durable and
wearable. It is equipped with material stirring system, three point liquid level control, frequency
conversion adjustment, bottle in and out protection, automatic speed adjustment, filling with bottle and
no filling without bottles. It adopts good stainless steel material, which meet the requirement of food
sanitation. Vacuum pump can make sure there is no dripping oil on bottle body or machine surface,
keep the bottle and machine clean.
Technical parameter
| Model | YGF18-6 |
| Capacity/1L BOTTLE | 3000BPH |
| Filling head | 18 |
| Capping head | 6 |
| Filling time | 5 second(approx)(100ml/min) |
| Filling temperature | 18-20℃ |
| Filling tank | Semi closed type filling tank, using worm gear to adjust the height |
| Filling valve | Using cam to force down |
| Speed control | AC MOTOR+REDUCER+INVERTER |
| Gas consumption | 100NL/min(5-6Kg/cm²)(take 100EA as the base) |
| Power | 2.2Kw |
| Weight | 2000 Kg |
| Overall dimensions(LxWxH) | 1900x1800x2200mm |

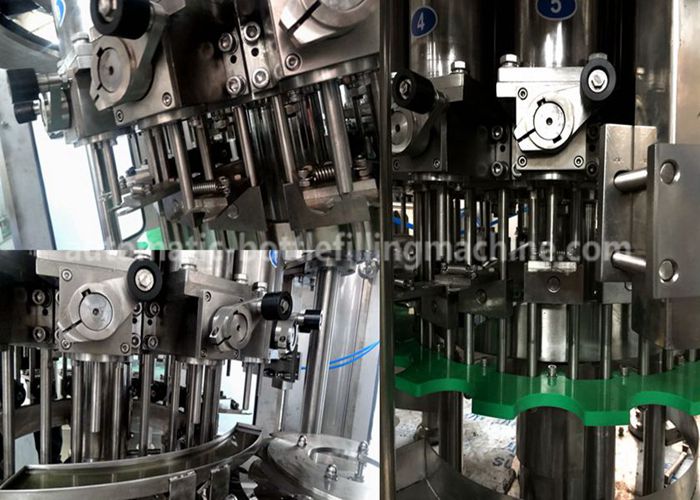

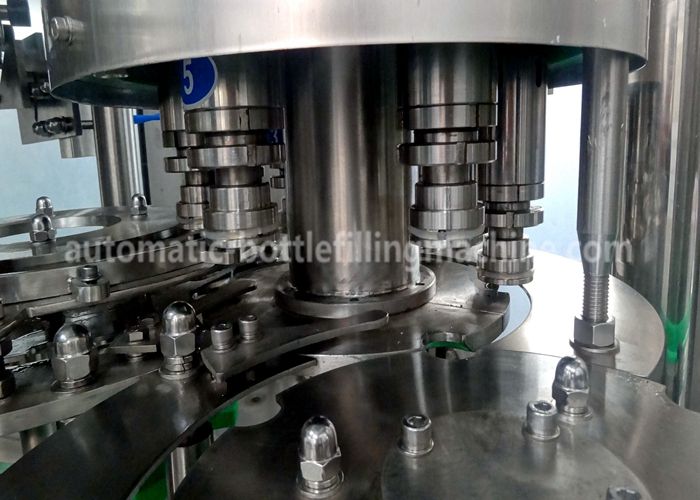

High definition Deatails
6 heads Capping part
Note: the filling range and speed can be designed according to user needs to design
different filling head number.
| | |
| | |
| | |
| | |
| | |
| | |
| | |
| | KEYENCE Japan it is waterproof |
| | Taiwan, heat-resistant, oil proof |
