Inside&External Brusher / 5 Gallon Brushing Machine/ Barreled Filling
Line
product description
Automatic bottle Internal & exterior brush washing machine is designed for pre-wash the reusable
5 gallon bottle by detergent washing and clean water washing for cleaning the dust, oil things
Inside &outside of the bottle to improve the washing filling capping system of the main machine, it
is geared by high grade Nylon brushing system for washing the bottle bottom, bottle body, bottle
shoulder part, controlled by PLC control system.
Auto inside & outside bottle washer manufactured by our company. This device is the latest
practical product which is developed and manufactured by using the improved assembly line.
The machine is an inside and outside washing device for 5 gallon recycled bottle which is
manufactured according to the clients’ requirement. After coming into the market, it is well
accepted by water equipment industry from home and abroad.
The operation procedures of Auto inside & outside bottle washer: bottle entering;bottle
checking;inside washing;bottle out.It is controlled and completed by PLC automatic through
precise orientation with little manpower and low working intensity. Electric
module to adopt import series edition binding etc. In order to make the performance of the device
more stable, electrical components manufactured elaborately by imported series of products.
Technical paramter
internal brusher
| Item | STN-3 | STN-4 |
| Barrel size(mm) | Φ270*490 | Φ270*490 |
| head | 3 | 4 |
| Capacity (B/H) | 400 | 600 |
| Power(kw) | 0.3 | 0.55 |
| voltage | AC380V 50HZ | AC380V 50HZ |
| Weight (kg) | 300 | 330 |
external brusher
| Item | STW-600 | STW-900 |
| Barrel size(mm) | Φ270*490 | Φ270*490 |
| head | 3 | 4 |
| Capacity (B/H) | 600 | 900 |
| Power(kw) | 1.75 | 1.95 |
| voltage | AC380V 50HZ | AC380V 50HZ |
| Weight (kg) | 600 | 780 |
product pictures

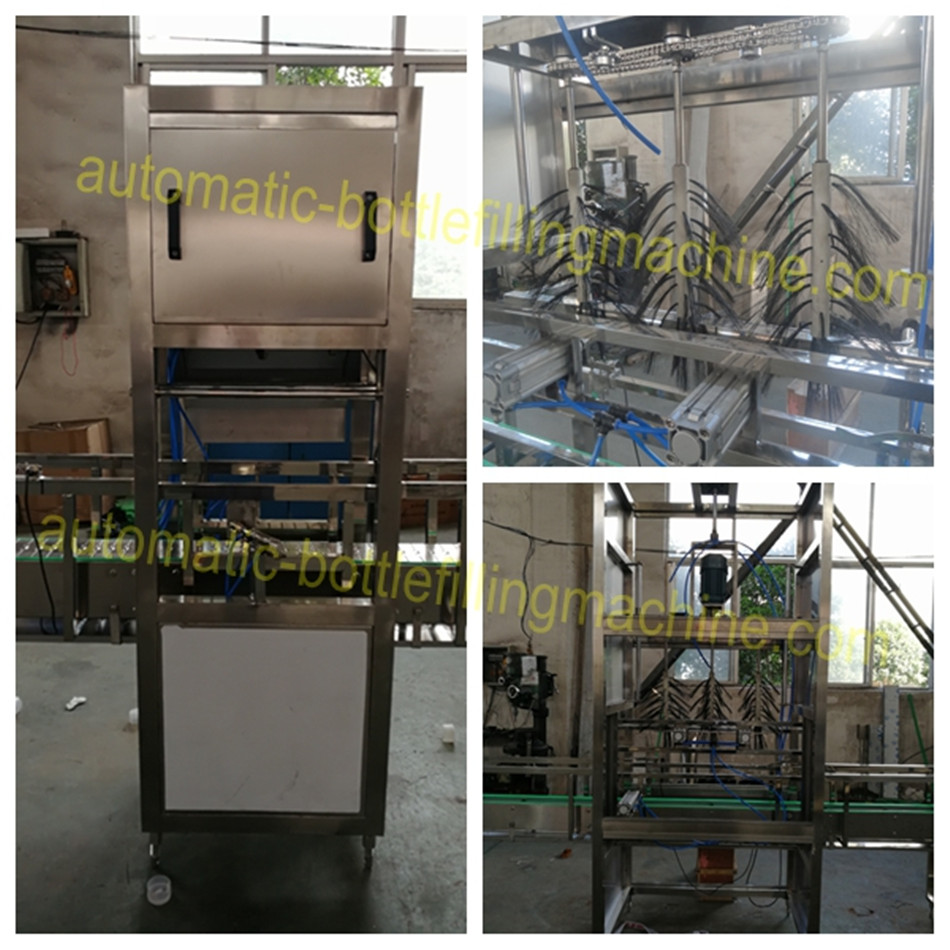

internal brusher

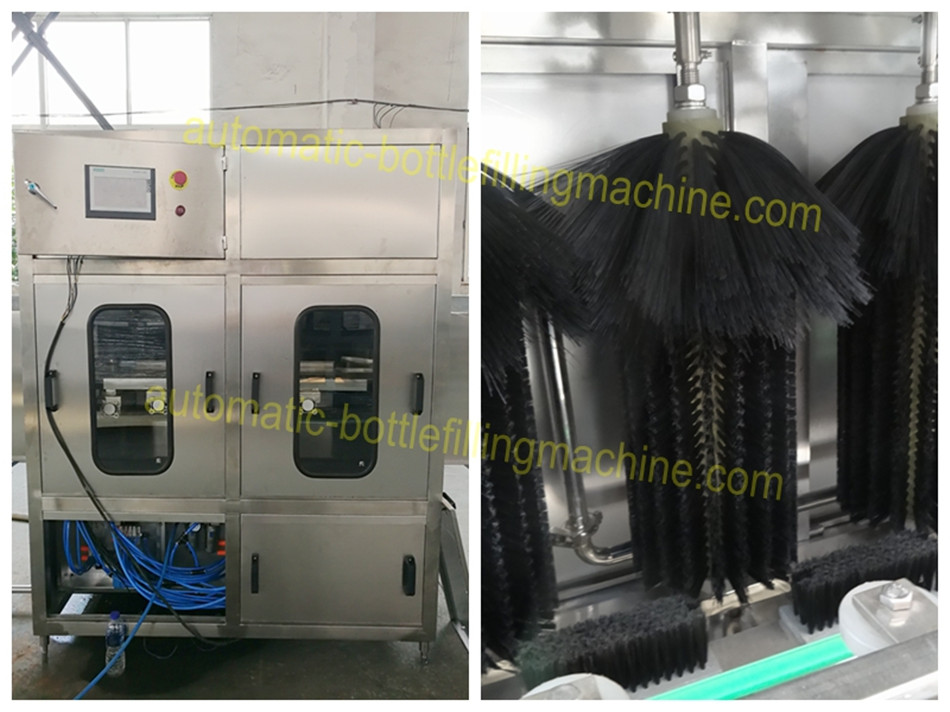

external brusher

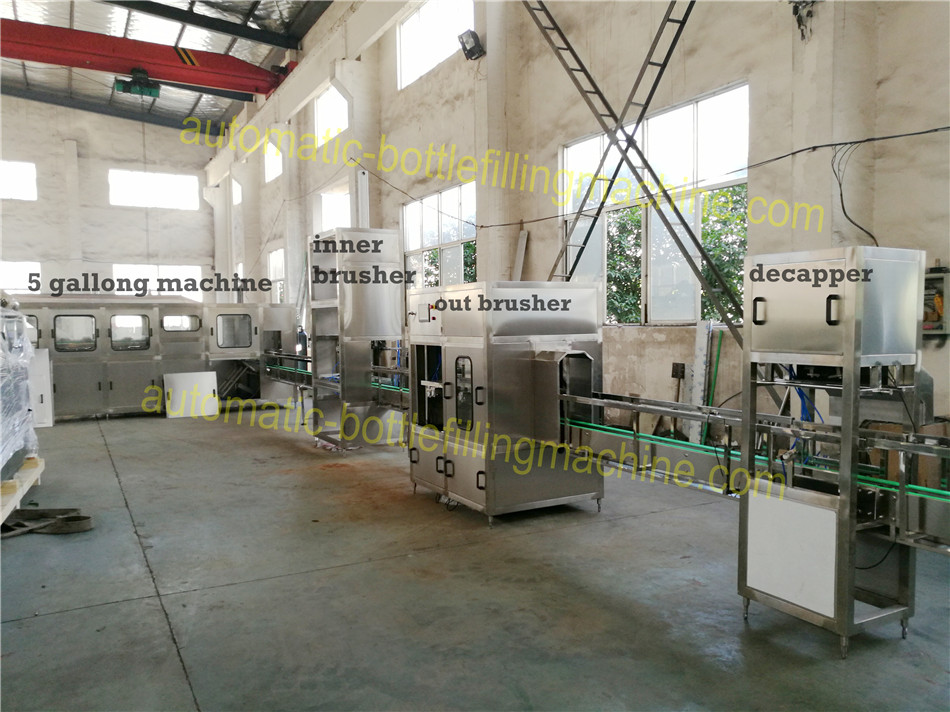

complete line
The flowchart of 5 gallon water production
decapper—external brusher—internal brusher—5 gallon rising filling capping machine –cap shrink
machine—bagging machine
we can supply all these machines, just pls contact with us... ...
